Traffic Signal
Report Issue or Submit Request
To report issues or to request new:
- Advance left turn
- Dynamic speed sign
- Pedestrian signal
- Pedestrian walk time
- Red light camera
- Traffic signal
The Dynamic Speed Signs contain a radar device and an LED display. The radar measures the speeds of oncoming vehicles and the LED sign displays their speeds to the passing motorists. The unit functions as an educational tool for residents and motorists to raise awareness about motor vehicle speeds. The equipment is for information purposes only and does not issue speeding tickets.
Purpose of the Dynamic Speed Signs
Dynamic Speed Signs have been introduced to the City of Hamilton as part of a safety initiative to reduce vehicle speed. The operating speed electronically displayed is a strong visual reminder to the motorist to comply with the posted speed limit.
LED Speed Sign Display Accuracy
The signs have been tested and are to within +/- 4 km/h of the displayed speed, so there may be some differences between what the sign and your spedometer display. Traffic Engineering still uses Automatic Traffic Counters on the road for accurate measures of speed and volume when needed.
Full traffic signals are traditional green-amber-red displays for all directions of approaching traffic. Full signals are usually installed when intersections have delays and back-ups under two-way or all-way stops, often due to too much traffic.
Factors Which Reduce Traffic Flow
- Percentage of trucks in the traffic stream – they move slower and take longer thereby reducing capacity
- Transit Stops – buses stopping in a curb lane to pick up passengers can interrupt traffic flow
- Right turns – vehicles turning right can slow the flow of traffic in the curb lane especially if there are lots of pedestrians crossing
- Left turns – if there are no exclusive left turn lanes then a waiting left turn vehicle can severely delay traffic
- Grades – if the approach to an intersection is on an uphill grade then traffic will move slower
- Lane widths – drivers tend to drive slower when lane widths are narrow which impacts capacity
- Curb parking manoeuvres – vehicles backing into parking spaces can disrupt traffic flow
- Signal timing and phasing
The City‘s decision to install a full traffic signal control at an intersection is based on the current Ontario warrant outlined in Ontario Traffic Manual Book 12 (OTM Book 12) published by the Province of Ontario. Under this warrant, a traffic control signal would be technically supported if one of the following five following reasons is fulfilled:
- Minimum vehicle volumes – sets minimum volume criteria on all approaches and on side street approaches. There are separate volume criteria for restricted flow (urban) and free flow (rural) conditions.
- Delay to cross street – sets minimum volume criteria to reflect conditions where traffic volumes on the main road are so heavy those road users on the minor road suffer excessive delays. There are separate volume criteria for restricted flow (urban) and free flow (rural) conditions.
- Collision experience – sets a minimum number of collisions “preventable” by traffic signal control over a three year period. Five or more collisions in each of the three preceding 12 month periods are used as reason.
- Combination justification – makes provisions for conditions where two or more of reasons 1, 2 or 3 are met 80% of the time.
- Pedestrian volume – sets minimum pedestrian volumes and delays at a location for the installation of a traffic control device. This warrant is applicable to an intersection or mid-block location.
Traffic Signal Timing
Traffic signals operate in one of three modes- fixed time, semi-actuated, and fully actuated.
- Fixed Time - The traffic signal will continuously cycle for each roadway. A pre-set amount of time is allocated to each direction.
- Semi-Actuated - The major roadway receives green unless vehicles are on the minor roadway or if a pedestrian pushes the pushbutton to cross the major roadway is detected. In ground or overhead detection in the approach lanes of the minor street are used. This type of control is used where the major street has more traffic than the minor street.
- Fully-Actuated - There are vehicle detectors located in all of the approach lanes to the traffic signal. The amount of green time for each traffic movement will vary according to the number of vehicles detected.
- Coordination - Traffic signals along minor roadways throughout the city are ‘synchronized’ to enhance the operation of one or more directional movements that are programmed to a specific time of day along the corridor. Traffic signal timing plans are calculated using the posted speed limit.
Staff regularly access the need for left-turn phasing at traffic signals based on this criteria:
- The presence of an exclusive left-turn lane
- Delay to through traffic in combination left and through lanes
- Delay and queuing based on the following:
- Volume of left-turning traffic
- Volume of opposing traffic
- Availability of gaps based on pedestrian crossing volumes
- Emergency detour routes and mountain access points
- Left-turn collision statistics
- Site distance measurements
- Transit operations and schedule adherence
- Approved development applications that generate increased traffic
- We also access undesirable side effects that left-turn phasing can cause such as:
- Neighbourhood traffic infiltration;
- Increased delay and queuing for other directions of travel
- Delays to pedestrians
- Cost of additional equipment, wiring and vehicle detection equipment
- Overall effect on the entire traffic network by increasing cycle lengths
- Progression and coordination of adjacent traffic signals
Traffic Signal Vehicle Detection
Detection used throughout the City of Hamilton
- In ground inductive loops are used, these loops are able to detect when a vehicle is present which notifies the traffic signal controller. The vehicle must be positioned behind the while stop bar in order to be properly detected.
- The City uses video detection which monitors and sends live traffic feeds to the Traffic Management Centre, and also detects vehicles using a processor notifying the traffic controller when a vehicle is present.
Traffic Cameras
What is the difference between a Red Light and a Vehicle Detection Camera?
- A Red Light Camera is a type of traffic enforcement camera that an image of a vehicle which has entered an intersection during the all red phase.
- Detection Cameras are solely used to detect the presence of vehicles, and modify signal timings accordingly using a processor. The City of Hamilton does not record video or license plates.
Centralized Traffic Control System

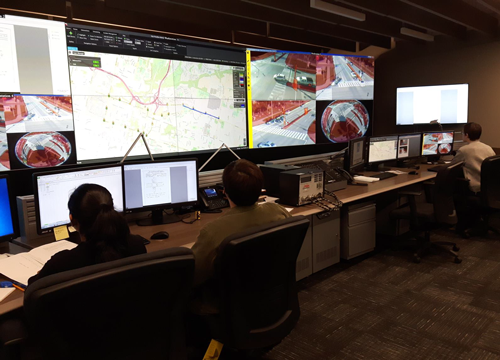

Currently the City of Hamilton has over 100 signalized intersections under computer control at our Traffic Management Centre, located at 1375 Upper Ottawa Street.
The Traffic Management Centre communicates to our traffic signals using 5.8 GHz radio technology installed at the intersections which use point-to-multipoint communication. The radio technology utilizes standard TCP/IP Ethernet protocols. Not only do we communicate to our traffic signals using this medium, we also receive live video feed from our peripheral devices. The City of Hamilton will also be installing fibre during major road construction.
The Traffic Signal System
- Adjust Signal Timings to accommodate traffic conditions from the Traffic Management Centre.
- Records functionality for legal purposes
- Maintains time clocks within our traffic controllers, in order to retain synchronization along various corridors throughout the City.
- Monitors operation of traffic signals and improves response time to damaged vehicle/pedestrian detection equipment, current traffic conditions and reporting.
- Implements Signal Timing Plans used for emergency and construction detour routes.
Request Traffic Signal Timings & Drawings
For traffic signal timing information and traffic engineering technical drawings, you will need to:
Download the Traffic Signal Application Form
Submit completed form and fee by:
Mail or in person:
City of Hamilton
Transportation Operations
Transportation, Operations & Maintenance Division - Public Works
1375 Upper Ottawa Street
Hamilton, Ontario L8W 3L5
Fax 905-318-5713
Email [email protected]
Pay the required fee. You can pay by cash or cheque (made payable to the City of Hamilton) when you submit your application or you may choose to be invoiced.
Traffic signal controller timing data
- Cost is $65.28 per intersection ($73.77 including HST)
- These are the controller programming sheets in raw form
- Data only for use by qualified traffic engineering personnel
- Duration of red, amber, green, left turn signals and other detailed signal operation info
Traffic signal timing plans
- Cost is $277.44 per intersection ($313.51 including HST)
- Information is in summarized chart form
Traffic signal installation drawing
- Cost is $65.28 per intersection ($73.77 including HST)
- Shows poles, signal heads, pavement markings and other above and below ground signal infrastructure
Pavement marking drawing
- Cost is $65.28 per intersection ($73.77 including HST)
- Shows pavement markings of a road section
Traffic Counts
For any traffic counts, please visit our mapping tool (MS2) for all currently available studies.
For any location we have a count, there will be a signal or icon that when you click on it, a 24hr volume will display as a popup
Should you require a further detailed traffic count, the cost is $70.79 ($79.99 including HST).
Turning Movement Counts
(at intersections, signal icon, or circle on the map).
Example: Totalling the two directions on the street you are looking at will give you the 24hr volume on that street alone.

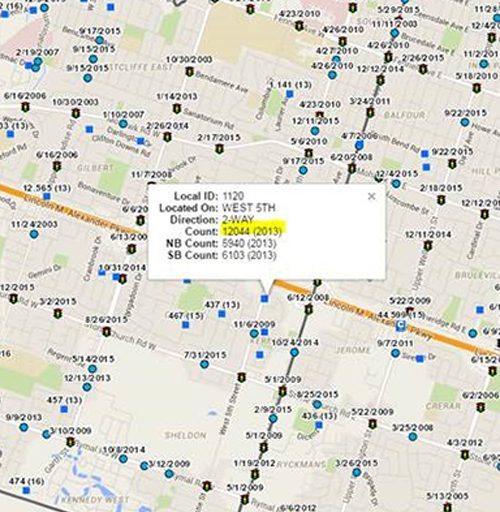

Mid blocks
(at locations between two intersections, square on the map).
Example: the popup illustrates the 24 volume in the popup labelled as ‘Count’
